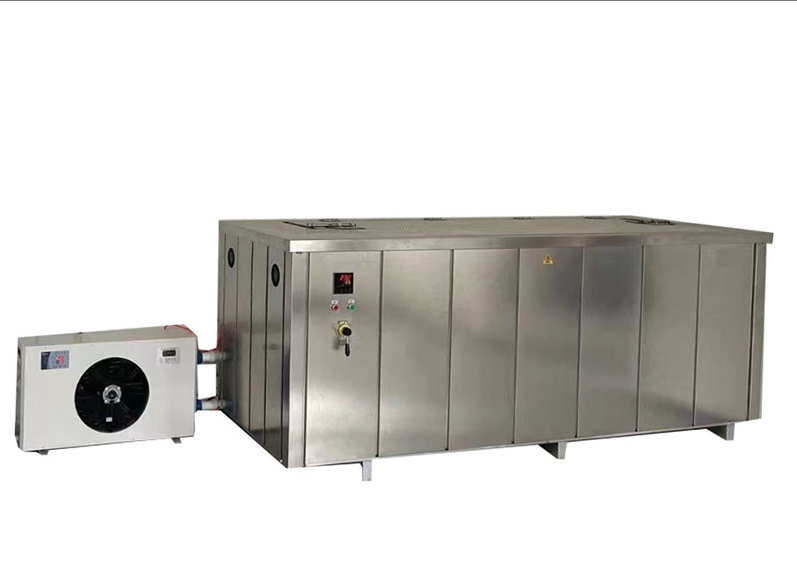

Upgrade Your Pressure Testing Process with Our Customizable
Hydrostatic Pressure Testing Machine
Applications:
The XGY equipment is engineered to be compatible with end caps with
a diameter range of Φ10-1600mm, enabling it to meet a wide variety
of application requirements. Moreover, it holds CE and ISO
certifications, which ensures that the equipment complies with the
highest international standards for quality and safety, giving
customers full confidence in its performance.
For thermoplastic pipe testing scenarios—such as plumbing,
irrigation, and other industrial applications—the 16MPa PVC Plastic
Pipe Hydrostatic Pressure Testing Machine (compliant with ASTM
D1598) manufactured by JINHAIHU is the optimal choice. Featuring a
test temperature range of 15-95℃, this machine enables accurate
simulation of real-world operating conditions for pipes and
fittings, ensuring reliable and practical test results.
Product Description:
The Hydrostatic Pressure Testing Machine is equipped with the
capability to generate test curves for both pressure-time and
pressure-temperature. This feature facilitates efficient analysis
and interpretation of test results, enabling quick identification
of potential issues and timely implementation of necessary
adjustments.
Beyond its standard functionalities, the Hydrostatic Pressure
Testing Machine also provides customized support for OEM
applications. This makes it an ideal solution for enterprises
seeking to develop tailored testing protocols to address their
specific operational needs.
In summary, the Hydrostatic Pressure Testing Machine is a
high-performance and versatile instrument, perfectly suited for
conducting hydrostatic pressure and bursting tests on a diverse
range of materials. Its automatic test mode, wide temperature
range, and customizable features render it an excellent choice for
businesses of all sizes, catering to both routine testing and
specialized application requirements.
Features:
Product Name: Hydrostatic Pressure Testing Machine
Control Mode: Micro-control, industrial PC control
End Caps: Φ10-1600mm
Control Accuracy: ±1%
Test Medium: Water
Test Temperature Range: 15~95℃
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108,
ASTMF1335.
Technical Parameters:
| Model | XGY-16C |
| Diameter range | Φ8-1800mm |
| Stations | 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode | Micro-control, industrial PC control |
| Display mode | Industrial PC LCD color display |
| Storage mode | PC strorage |
| Print mode | Color printer output |
| Test pressure | Pressure range | 0.1-16MPa |
| Control accuracy | ±1% |
| Display resolution | 0.01MPa |
| Working range | 5%~100%FS |
| Indication error | ±1% |
| Test Timer | Timer range | 0~10000h |
| Timer accuracy | ±0.1% |
| Timer resolution | 1s |
| Power | 380V 50Hz three-phase four-wire 1.5KW |
| end caps models | from Φ16 to 630mm |
| Water tank size | accoard to the pipe size |
| Temperature range | 15-95℃ |
| Dimensions (three stations) | 715×625×1700(mm)or others |
Support and Services:
To ensure the stable operation and optimal performance of your
Plastic Pipe Hydrostatic Pressure Testing Machine, we offer
comprehensive professional technical support and services. Our
experienced technical team provides the following core services:
1. Troubleshooting & Professional Technical Consultation
We provide timely troubleshooting support via multiple channels
(phone, email, remote desktop) to quickly diagnose and resolve
operational issues. Additionally, our team offers professional
technical consultation on test procedures, parameter setting, and
equipment optimization.
2. Supply of Spare Parts & Consumables
We provide 100% genuine spare parts and high-quality consumables
for the Hydrostatic Pressure Testing Machine. Our supply chain is
stable with fast delivery, ensuring uninterrupted operation of your
equipment.
3. Software Updates & Upgrades
We regularly release software updates, including bug fixes,
operational optimizations, and compatibility improvements. We also
offer customized software upgrade services to meet your evolving
testing requirements and industry standard updates.
We are dedicated to delivering excellent customer service
throughout the entire lifecycle of your Plastic Pipe Hydrostatic
Pressure Testing Machine. If you have any questions or service
needs, please feel free to contact us at any time.
FAQ:
Q1: What is the purpose of the Plastic Pipe Hydrostatic Pressure
Testing Machine?
A1: The Plastic Pipe Hydrostatic Pressure Testing Machine is
specifically designed to test the hydrostatic pressure resistance
and bursting strength of plastic pipes.
Q2: Which components and materials can the Plastic Pipe Hydrostatic
Pressure Testing Machine test?
A2: The machine is applicable for testing plastic pipes and
composite pipes, including but not limited to PP-R, PP-B, PP-A,
PVC, PE, and PE-X pipes.
Q3: What is the accuracy of the Plastic Pipe Hydrostatic Pressure
Testing Machine?
A3: The Plastic Pipe Hydrostatic Pressure Testing Machine features
an accuracy of ±0.1% of the full-scale reading, ensuring highly
reliable test data.
Q4: What is the maximum test pressure of the Plastic Pipe
Hydrostatic Pressure Testing Machine?
A4: The maximum test pressure of the machine is up to 10 MPa (100
bar / 1450 psi), covering the pressure testing needs of most
plastic pipe applications.
