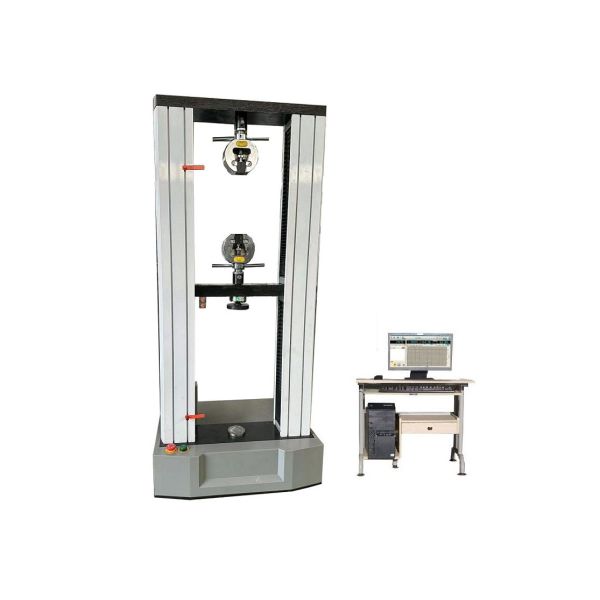

    Computer Controlled Universal Testing Machine UTM Tension And Compression Testing Machine

    Ask Lasest Price
    Brand Name : JHH
    Model Number : XWW-10KN
    Certification : ISO9001
    Payment Terms : T/T,L/C,D/A,D/P,Western Union,MoneyGram
    Delivery Time : 7-15 working days
    Supply Ability : 20 sets per month
    • Product Details
    • Company Profile

    Computer Controlled Universal Testing Machine UTM Tension And Compression Testing Machine

    Computer Controlled Electronic Universal Tension and Compression Machine

    FAQ:

    Q1: What is an Electronic Universal Testing Machine?
    A1: An Electronic Universal Testing Machine is a device used to measure materials' mechanical properties, including tensile strength, compression strength, elastic modulus, and elongation.


    Q2: What materials can be tested by an Electronic Universal Testing Machine?
    A2: It can test various materials such as metals, plastics, elastomers, and composite materials.


    Q3: How accurate are Electronic Universal Testing Machines?
    A3: They feature high accuracy, with measurements within ±0.5% of the actual value.


    Q4: What types of tests can be conducted with an Electronic Universal Testing Machine?
    A4: It supports multiple tests, including tensile, compression, flexure, shear, and tear testing.

    Technical Parameters:

    ModelXWW-10KN
    TypeDouble screw
    Max. Load10KN
    Resolution of Load1/300000
    Accuracy Grade0.5 grade
    ForceForce-measuring Range0.5%~100%FS
    Force-measuring Accuracy≤±0.5%
    Range of force control rate0.005--5%FS/S
    Relative error of force control rateWithin±1% of set value


    Metal extensometer




    Measurement range0.2-100%FS
    Range of deformation rate0.02~5%FS/S
    Error of indicationWithin±0.5%
    Resolution1/300000
    Large deformation

    . Measurement range

    5mm-1000mm
    Error of indicationWithin±0.5%
    Resolution0.001mm
    CrossbeamCrossbeam Displacement Resolution0.001mm
    Crossbeam Speed Range0.001-500mm/min
    Test width380mm (or according needing)
    Total Crossbeam Valid Travel800mm
    ClampsWedge Grip(or according to your needs)
    PC SystemControl force, displacement and deformation
    Power SupplyAC220V;400w
    StandardsGB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790
